450m/Min Power Cord Manufacturing Machine , PVC Sheathing Cable Extrusion Machine

Ask Latest Price
Video Channel
Brand Name :I-suntop
Model Number :I-70+35
Certification :SGS
Place of Origin :China
MOQ :1set
Price :By negotiation
Payment Terms :L/C,T/T
Supply Ability :Up to different machine
Delivery Time :Min.30working days
Packaging Details :Plastic film+wooden box
Usage :Extruding
Application :sheathing
Finished wire diamter :1.0-12mm
power :40KW,3phase 380V 50HZ/60HZ
Warranty :1year,longtime maitenance
Wire range :Max.450
Hs code :84794000
After-sales service provided :Engineers available to service machinery overseas
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

Extruding Usage Pvc Sheathing Electrical Wire Cable Making Machine

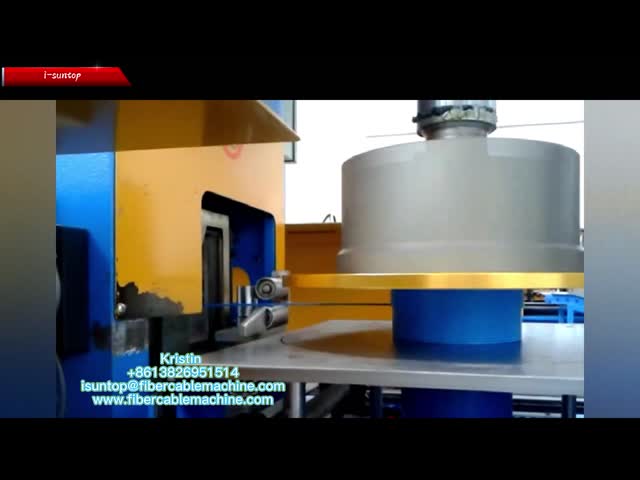

i-suntop Electric wire and cable equipments2022022...

1. Application for Extruding Usage Pvc Sheathing Electrical Wire Cable Making Machine :

It is mainly used to produce the PVC,PP,PE,SR-PVC and other plastic material for the automobile wire,insulated jacketed and electrical wire,power wire,insulated sheathing and other wire&cable and PU,NYLON jacket,low smoking non-halogen flameresistant environmental building line.

2. Technical parameters for Extruding Usage Pvc Sheathing Electrical Wire Cable Making Machine :

Machine type GF-70+35
Pay off type Active or passive pay off
Screw diameter Φ35 and Φ70
Screw L/D 35mm:16:1,70mm:26:1
Max.extrusion output 35mm:30kg/h,70mm:120kg/h
Motor power 50mm:22KW ,35mm:2.2KW
Wire diameter Φ1.0~Φ12.0mm
Cooling device Folding type W/U type
Haul-off power 2.2KW
Wire-storage length 180-250m
Max. Line speed 450m/min
Take-up type Double shaft bundle packaging/shaft packaging

3. Description for Extruding Usage Pvc Sheathing Electrical Wire Cable Making Machine:

Item qty.
Double head Active/passive pay-off 1set
Vertical tension dancer 1set
70mm Main extruder 1set
35mm extruder for stripe extrusion 1set
1.5m pre-water cooling trough 1set
Diameter gauge 1set
8m Single layer main cooling trough 1set
500mm Dual wheel capstan 1set
9m horizontal type cable accumulator 1set
15KVpower frequency spark tester 1set
Meter counter 1set
400-630mm dual reel take up 1set
Electrical control system (PLC control optional) 1set
Powder device 1set
Printer(optional) 1set

Can be optional for PLC control,infuse color machine (for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's requirement.
